汇高HGL-65V 中速机 5G产品专用加工机床
产品分类： 中速机
产品优势：
免FIT模、少火花、合模一次成功、从而提升2-3倍加工效率。5G产品专用加工机床，让客户在接单价格不变的情况下，无形中把单价提高2-3倍，凸显谈价优势，中速机将成为客户赚...
免FIT模、少火花、合模一次成功、从而提升2-3倍加工效率。5G产品专用加工机床，让客户在接单价格不变的情况下，无形中把单价提高2-3倍，凸显谈价优势，中速机将成为客户赚...
订购热线：0769-81551919
▌ 常见问题 / CJWT
▌ 四大自创 / SDSC
▌ 产品参数 / CPCS
| 规格/型号Model/Specification | 单位unit | HGL-65V | ||||
| 工作台Table | ||||||
| 工作台面积Work table area | mm | 600*540 | ||||
| T型槽（槽数*宽度）Tslot(Size*width) | mm | 5*14 | ||||
| 工作台最在大负荷Maximum load | kg | 500 | ||||
| 行程Stroke | ||||||
| 左右行程(X)Lingintdina(X-axis) | mm | 600 | ||||
| 前后行程(Y)cross travel(Y-axis) | mm | 500 | ||||
| 主轴头上下行程(Z)vertical travel(X-axis) | mm | 280 | ||||
| 主轴鼻端至工作台面距离 Distance from guide plane to spindle center | mm | 130-410 | ||||
| 龙门宽 Gantry width | mm | 750 | ||||
| 龙门通过高度 Gantry passing height | mm | 290 | ||||
| 主轴Spindle | ||||||
| 主轴端孔斜度Spindle taper | BT40 | |||||
| 最高主轴转速Max.spindle speed | rpm | 18000 | ||||
| 驱动结构The highest spindle speed | 一体式 | |||||
| 进给Feed | ||||||
| 切削进给Cutting feed | m/min | 10 | ||||
| 快移速度Cutting feed rate | m/min | 15 | ||||
| 自动换刀装置Trades theknife installment automatically | ||||||
| 刀把形式The knife handle pattern | / | |||||
| 刀具储存容量Tool storage capacity | tools | / | ||||
| 刀具 Tool | 最大刀具长度Maximum tool length | mm | 200 | |||
| 最大刀具重量Maximum tool weight | kg | 3.5 | ||||
| 马达Motor | ||||||
| 主轴驱动马达axle actuates motor | kw | 11.0 | ||||
| 驱动马达X，Y，Z轴Servo motor of X.Y.Z.axis | kw | 1.3*1.3*1.3 | ||||
| 导轨结构The guide rail structure | ||||||
| X，Y轴X.Y-axis | 线30*2 | |||||
| Z轴Z-axis | 线30*2 | |||||
| 丝杆结构 | Screw structure | mm | XYZ：Φ32*5 | |||
| 机械重量、占地Mechanical weight and occupying land area | ||||||
| 占地面积Machine size(L*W*H) | mm | 1800*2000*2400 | ||||
| 机械净重Machine weight | kg | 3500 | ||||
| 精度Accuracy | ||||||
| 定位精度 Pointing accuracy | 不带电子尺No-bring the electronic ruler | mm | ±0.005 | |||
| 重复精度 Repeat accuracy | 不带电子尺No-bring the electronic ruler | mm | ±0.003 | |||
| 三轴加速度 | Three axis acceleration | m/s² | ||||
| 电力、空压需求electric power and air pressure consumption | ||||||
| 电力需求Electric power consumption | KVA | 13 | ||||
| 空压需求Air pressure | kgf/cm2 | 6 | ||||
▌ 产品配置 / CPPZ
| 规格/品牌Model/Specification | HGL-65V | |||||
| 主配置 | 1 | 系统 System | ● | 汇高981S智能系统 | ||
| 2 | 机身 Fuselage | ● | 汇高 | |||
| 3 | 主轴 Spindle | ● | 汇高(德国FAG高速轴承） | |||
| 4 | 三轴丝杆 Three shaft screw | ● | 台湾上银或银泰 C3级定制 | |||
| 5 | 三轴导轨 Three axis guide | ● | 德国英纳 P级 | |||
| 6 | 变频器 Converter | ● | 麦格米特 | |||
| 7 | 三轴马达 Three axis motor | ● | 日本松下 | |||
| 8 | 三轴驱动 Three shaft drive | ● | 日本松下 | |||
| 9 | 联轴器 Coupling | ● | 日本NBK | |||
| 10 | 油冷机 Oil cooling machine | ● | 雷德 | |||
| 11 | 轴承 Bearing | ● | 德国FAG P4级 | |||
| 12 | 刀库Tool storage | — | 汇高 | |||
| 电气 | 13 | 防爆式工作灯Explosion-prooftype sunlight working lamp | ● | LED | ||
| 14 | 便携手动脉冲发生器Portable manual pulse generator | ● | 汇高 | |||
| 15 | 三色警示灯 Tricolor caution light | ● | LED | |||
| 16 | 自动注油器 The impermeator | ● | 宝腾 | |||
| 17 | 空气过滤装置Air filtration installment | ● | 台湾精器 | |||
| 18 | 电磁阀solenoidvalve | ● | 台湾精器 | |||
| 19 | 接触器 Contactor | ● | 德国施耐德 | |||
| 20 | 继电器+座 Relay+seat | ● | 日本和泉 | |||
| 21 | 电源变压器 Power sourc manostat | ● | 台湾金保 | |||
| 22 | 电源盒power box | ● | 台湾明伟 | |||
| 23 | 全封闭式防护罩 Fully enclosed | ● | 汇高 | |||
| 24 | 电控箱空调系统Electrically controlledboxair-conditinging system | ● | 汇高 | |||
| 25 | 气管windpipe | ● | 日本千代田 | |||
| 26 | 线材wire stock | ● | 进口防油线 | |||
| 其他功能部件 | 27 | 喷嘴切削液供给装置Spray nozzle cutting compoundsupplies installment | ● | |||
| 28 | 吹风装置 Blowing installment | ● | ||||
| 29 | 刚性攻牙 Rigid tapping | — | ||||
| 30 | 油雾收集系统 Oil mist gathering system | ● | ||||
| 31 | 第四轴、第五轴 The fourth axis,the fifth axis | ▲— | ||||
| 32 | 自动对刀仪Automatic tool setting gauge | ● | ||||
| 工具 | 33 | 技术手册 Technical manual | ● | |||
| 34 | 工具及工具箱 Tools and tool box | ● | ||||
| 附件 | 35 | 锁刀座 Locks the tool apron | ● | |||
| 36 | BT40刀柄 BT40 The hilt | ● | ||||
| 37 | ER嗦咀ER The suontiue | ● | ||||
| 38 | 21飞刀 | ● | ||||
| 39 | R1.5刀粒 | ● | ||||
| 附件不保修 注：“●”为现配，“—”为不配，“▲”为选配。 Note: “●”for the sign,“—”for does not match,“▲”for the match. | ||||||

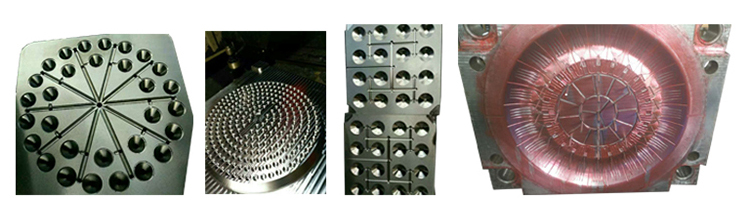

▌ 配件及样品展示 / PJYP
